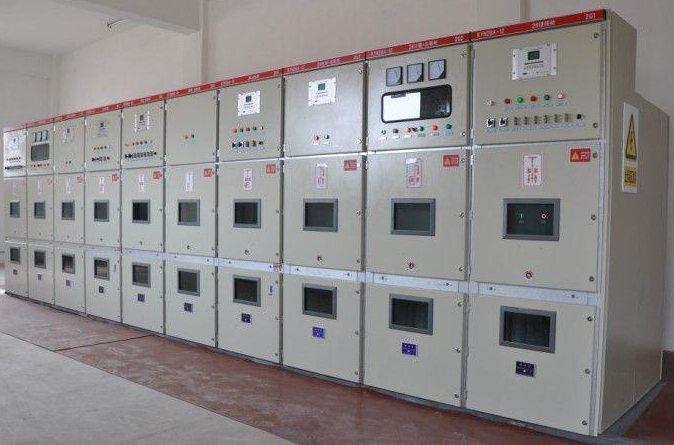

Ask what the offered system actually provides
The ring main unit range can contain different functional units and cable interfaces. A tender note such as “voltage indicator included” does not explain which ways have indication, whether an external accessory is needed, or how the interface is identified. Record the system name and function for each unit rather than assuming one arrangement applies across the complete RMU.
Older specifications may use terms such as VPIS or VDS. A current offer may use another system designation. Ask the engineer and supplier to reconcile the contractual terminology, applicable standard edition and the offered device. Procurement should preserve that distinction instead of replacing every term with “voltage indicator” on the comparison sheet.
Compare functions and physical interfaces
| RFQ question | Detail to freeze | Supporting document |
|---|---|---|
| Which functional units? | Ring ways, transformer feeder, metering or other specified units | Unit-by-unit device schedule |
| What is the declared purpose? | Presence indication, detection interface or another stated function | Manufacturer's system description and limitations |
| What is included? | Fixed device, coupling arrangement, sockets and any removable accessory | Itemized equipment and accessory list |
| Which accessories fit? | Exact compatible detector or phase-comparison accessory, if required | Compatibility statement and interface drawing |
| What happens on a defect? | Indication of missing supply, failed display or other declared failure states | Device instructions and project review |
| Is remote information needed? | Local indication versus separate remote signals | Point list and terminal boundary |
| What is accepted at delivery? | Identification, function and supplied-accessory checks | Factory and site acceptance schedule |
A matching connector appearance is insufficient evidence of compatibility. Ask for the actual interface designation, device identity and written accessory compatibility. If the owner already has portable accessories, include their identifiers in the enquiry and request a specific response.
Keep cable testing and indication separate
The RMU cable-test access and earthing-interlock guide deals with the permitted equipment states and interfaces for the approved test method. That subject should be coordinated with voltage indication, but a detection socket should not be assumed to be a cable-test connection. The manufacturer's instructions must identify each connection and its intended use.
Likewise, a fault-passage indicator addresses a different operating question. It should not be substituted for the required voltage indication or detection arrangement. Keep the device lists separate and link them through the functional-unit schedule so a missing item remains visible in the offer.
Allocate accessories, labels and training documents
State whether the purchaser expects one portable accessory for the project, one per RMU, or an interface compatible with owner-supplied equipment. These choices affect packing, storage, replacement and maintenance responsibility. Require the supplier to list separately any accessory that is optional or supplied by others.
Labels and drawings should use consistent unit identifiers. A socket location, display label and single-line diagram should lead the owner to the same functional unit. Include the device instructions, interface descriptions and maintenance information in the handover package. Any required familiarization should be specified as a deliverable with a named scope; do not assume it follows automatically from delivery of the switchgear.
Example: the utility owns an accessory that does not match
A purchaser requests compatibility with its existing detector but supplies no model or interface information. The quoted RMU includes a voltage indication system, yet the utility's accessory cannot be confirmed as compatible. Resolve this before order by identifying the owner equipment, obtaining a written interface response and deciding who supplies any required accessory. The decision changes the purchased package without changing the number of cable ways.
The RMU cable-connector compatibility guide offers a parallel document-control approach for power-cable terminations. Review those interfaces independently: compatibility of a cable connector does not establish compatibility of an indication or detection accessory.
RFQ checklist
- Required voltage class, functional-unit arrangement, quantity and project diagram.
- Unit-by-unit voltage indication or detection requirement and terminology.
- Contractual standard edition and owner approval expectations.
- Fixed-device identity, interface description and compatible accessories.
- Owner-supplied accessory identifiers requiring a compatibility response.
- Included quantities, storage, replacement and optional accessory scope.
- Local labels, instructions, failure-state information and remote points if required.
- Factory identification/function checks and site acceptance responsibilities.
- Deviations, document language and the owner's authorized operating procedures.
